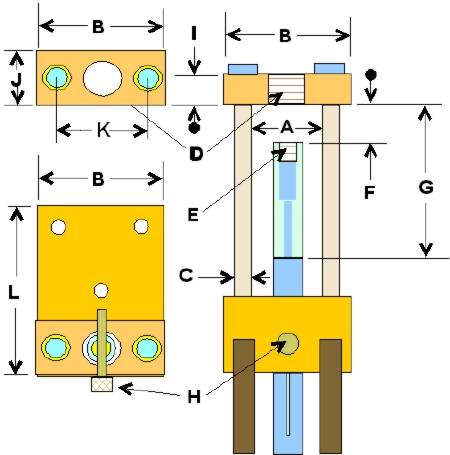

CSP-1 S-Press CSP-1 S-Press head and frame dimensions (refer to table below)

Space between supports A 2.00 Width of head B 4.00 Support Diameter C 0.75 Head threads D 7/8-14 Ram threads E 5/8-24 Ram-Head top of stroke clearance, short stroke mode F 3.25 Ram-Head top of stroke clearance, long stroke mode F 2.25 Ram-Head bottom of stroke clearance, either mode G 5.25 Stop pin (remove in long stroke mode) H n/a Head thickness I 0.75 Head depth J 1.50 Support centers K 2.75 Mounting plate depth L 6.00

CSP-2 Mega Mite Press CSP-2 MegaMite Press head and frame dimensions (refer to table below)

Space between supports A 3.00 Width of head B 6.00 Support Diameter C 1.00 Head threads D 1.5-12 Ram threads E 1.0-12 Ram-Head top of stroke clearance, short stroke mode F 5.125 Ram-Head top of stroke clearance, long stroke mode F 3.500 Ram-Head bottom of stroke clearance, short stroke mode G 8.00 Ram-Head bottom of stroke clearance, long stroke mode G 9.50 Head thickness I 1.00 Head depth J 3.00 Support centers K 4.00 Mounting plate depth L 8.00

Mounting pattern for CSP-1 and CSP-2 presses; (outer set of 1/2-in x 13 tpi holes is for the larger CSP-2 press):

Shipping Information CSP-1 S-Press: 22 lbs, 19-in x 11-in x 9-in carton. (L=19, H=11, W=9) CSP-2 Mega Mite Press: 70 lbs, 31-in x 10-in x 9-in carton. (L=31, H=10, W=9) CHP-1 Hydro Press: 250 lbs, 59-in tall x 20-in x 25-in pallet. (L=20, W=25, H=59)

Background drawing is the handle retainer bracket for the CSP-2 Mega Mite press
